Product description
Top
Inquiry
Bearing Designation
Dimensions mm
Ball Diameter
Load Rating (KN)
Weight
d H7
B
C1
d1
d2
d3-6H
h1
L3
(L4)
L5
d4
d5
sw
Dynamic Load
Static load
≈Kg
SCHS5
5
8
6
7.7
18
M5
27
10
36
4
11
9
11.11
13
3.2
8
0.016
SCHS6
6
9
6.75
8.9
20
M6
30
13
40
5
13
11
12.7
13
4.2
8.9
0.022
SCHS8
8
12
9
10.3
24
M8
36
16
48
5
16
13
15.87
14
7.1
14.1
0.047
SCHS10
10
14
10.5
12.9
28
M10
43
20
57
6.5
19
17
19.05
13
9.8
19.3
0.077
SCHS12
12
16
12
15.4
32
M12
50
22
66
6.5
22
19
22.22
13
13.2
23.5
0.1
SCHS14
14
19
13.5
16.8
36
M14
57
25
75
8
25
22
25.4
16
17
28
0.16
SCHS16
16
21
15
19.3
42
M16
64
28
85
8
27
22
28.58
15
21.4
32
0.22
SCHS18
18
23
16.5
21.8
46
M18X1.5
71
32
94
10
31
27
31.75
15
26
42.5
0.32
SCHS20
20
25
18
24.3
50
M20X1.5
77
33
102
10
34
30
34.92
14
31
47.5
0.42
SCHS22
22
28
20
25.8
54
M22X1.5
84
37
111
12
37
32
38.1
15
42.2
57
0.54
SCHS25
25
31
22
29.5
60
M24x2
94
42
124
12
42
36
42.86
15
52.7
68
0.73
SCHS28
28
35
24
32.29
66
M27x2
103
44
136
12
46
41
47.63
15
58.8
79
0.949
SCHS30
30
37
25
34.8
70
M30x2
110
51
145
15
50
41
50.8
17
70.7
88
1.1
Related Products
SPHS Series
SPHS..EC Series

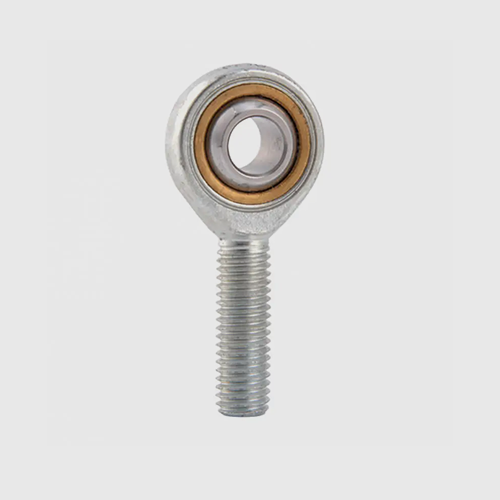

SCOS Series
×
